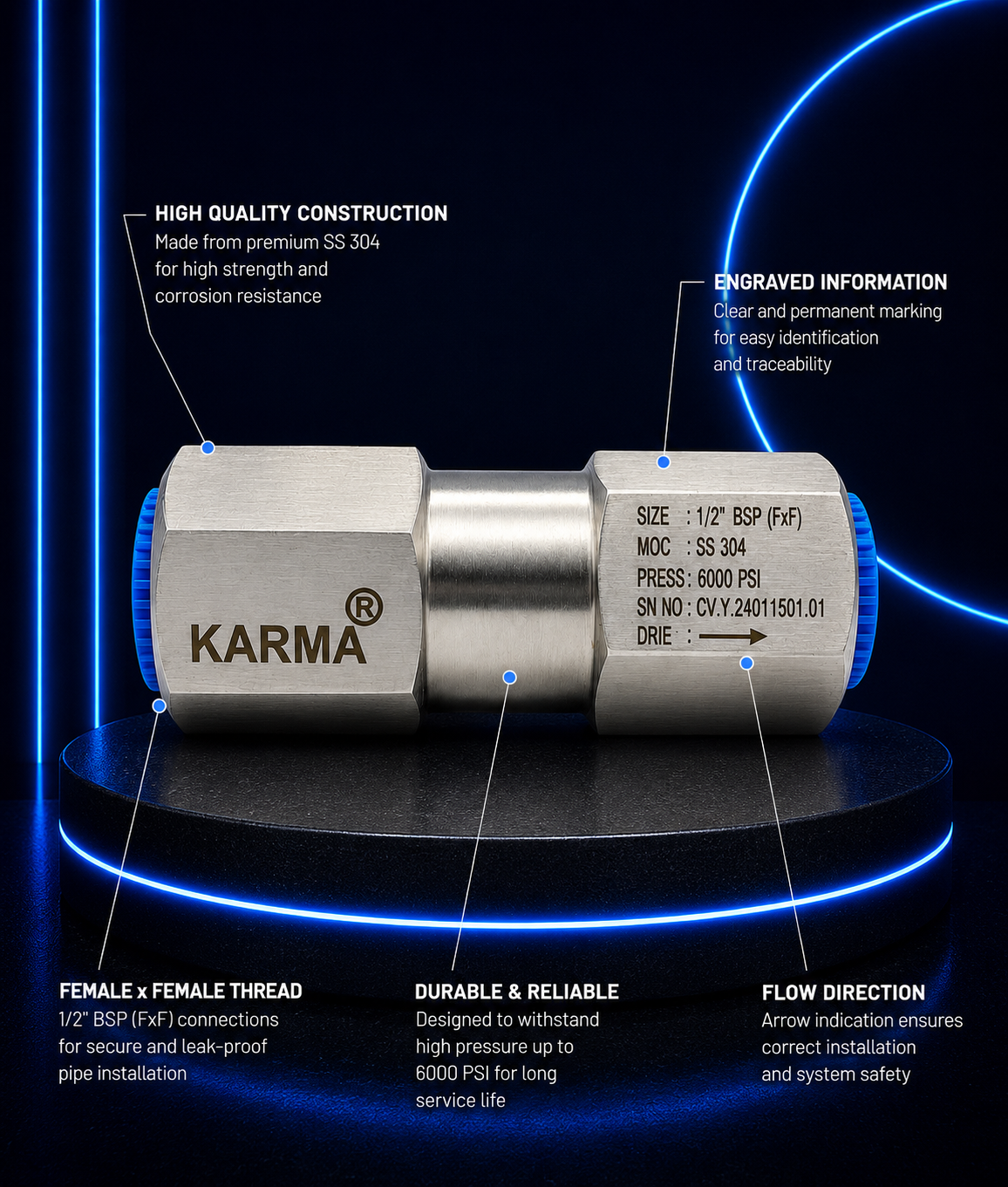

High Pressure Non Return Valve
High-performance high pressure non return valves engineered for automatic backflow prevention, reliable shut-off operation, and dependable pipeline protection in demanding industrial applications. Designed with precision heavy-duty body construction and quick response disc mechanism, these valves provide low pressure drop, secure reverse flow prevention, and long operational life across oil, gas, steam, chemical, hydraulic, and high-pressure pipeline systems.
Reliable Backflow Prevention
Precision disc and seat design ensures secure reverse flow prevention, dependable sealing, and safe high-pressure pipeline operation.
Heavy-Duty High Pressure Construction
Robust forged steel body construction provides superior mechanical strength, high pressure resistance, and extended operational service life.
Smooth Flow Performance
Optimized internal flow path minimizes turbulence and pressure drop for efficient media handling and stable system performance.
Corrosion Resistant Industrial Build
Manufactured using premium industrial-grade materials for excellent corrosion resistance, durability, and reliable performance in harsh industrial environments.
General Description
- Type: High Pressure Check Valve (Vertical / Horizontal)
- Operation: Automatic (Non-return / Self-Actuating)
- Mounting: Threaded
- Size Range: DN 15 To DN 50 (½” To 2”)
Construction & Material
- Body Material: Stainless Steel
- Disc / Valve: SS 304 / SS 316
- Seat: Metal Seat / Renewable Seat Ring
- Hinge / Spring: Stainless Steel (for rapid closing)
- Temperature Range: Up To 400°C (depending on material)
- Leakage: Tight shut-off (metal seated)
- Standards: API 602 / API 608 / ASME B16.34
Features
- Designed for high-pressure and high-temperature service
- Quick closing mechanism reduces water hammer effect
- Compact and robust forged or cast construction
- Low maintenance with long operational service life
- Suitable for horizontal and vertical flow installation
Industrial Applications
- Oil & gas pipeline systems
- High-pressure steam applications
- Chemical processing industries
- Power plant operations
- High-pressure industrial pipeline services
Standards & Performance
- Engineered for reliable automatic backflow prevention in high-pressure systems
- Precision valve design ensures secure sealing and dependable shut-off performance
- Heavy-duty stainless steel construction provides superior strength and durability
- Complies with API and ASME industrial standards for high-performance applications
- Suitable for demanding industrial environments involving high pressure and temperature conditions
